Automatic Animal Enclosure Heating Control System

Fully automatic control system for animal & reptile basking zones up to 6kW. Heat output can be adjusted in fine increments to provide the optimal temperature.

Share

Fully automatic control system for animal & reptile basking zones up to 6kW.

Heat output can be adjusted in fine increments to provide the optimal temperature.

Daily on and off times are set using the CC3 7-day time programmer.

A high limit safety cut-out will turn the heaters off if the ambient temperature inside the enclosure reaches a user-defined pre-set level.

Note: when the heat output is reduced, energy consumption is also lowered.

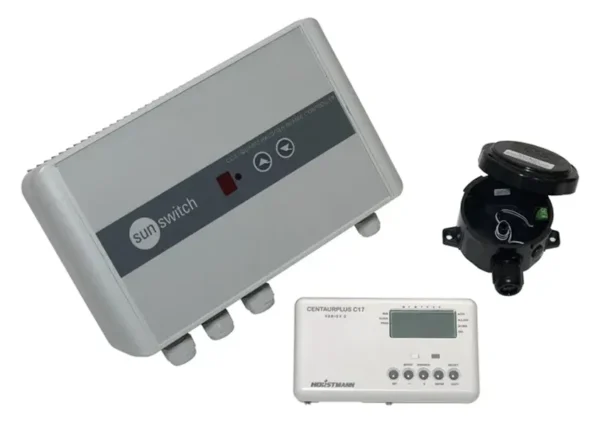

CC3-4M Controller:

Maximum load6kW
Power supply230 – 250Vac ~50-60Hz.
Ingress ProtectionIPX5 (moisture & splashproof)
Dimensions275 x 80 x 200mm (wdh)
IP ratingIP65
Mains cable4mm²

CC3 Time Programmer:

Power supply230 – 250Vac ~50-60Hz.
On periodsUp to 3 per day
Dimensions147 x 30 x 85mm (wdh)
IP ratingIP30
Controller cable2 wire low voltage pair

CC3 Temperature Sensor:

TypeNTC Thermistor
Accuracy±0.2°C
Dimensions113 x 50 x 110mm (wdh)
IP ratingIP65
Controller cable2 wire low voltage pair

(Please note – this product is intended for professional installation)

Downloads

CC3 Controller Installation Instructions
