6kW Soft-Start Push-Button Timer

Single-phase, soft-start push-button timer for heaters up to 6kW. Adjustable heater on-time from 1 – 60 minutes.

£185.00 £222.00 inc. VAT

Reduce heating costs
No heat wastage
Energy efficient

Low maintenance
Long life heater elements
Two year warranty

Product Code: SSPB6 Category: Controls & Sensors

• Energy-saving push-button timer with 1–60 minute ‘on’ time
• Ideal for use where heaters may otherwise be left switched on
• Soft-start prevents nuisance tripping and prolongs element life
• Easy to install
• Can be installed indoors or out

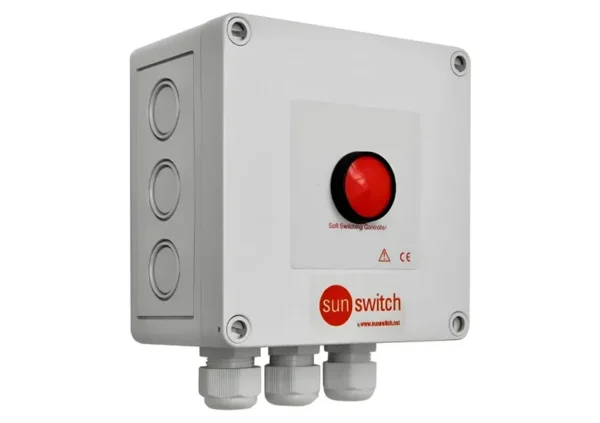

Weatherproof (IP65) push-button timer for use with SunSwitch heaters. ‘On’ time can be pre-set internally from 1 minute to 60 minutes. Electronically controlled soft start prevents inductive current surge at switch on, reducing the risk of nuisance tripping at the MCB, and prolonging element life by powering up heater elements gently.

Additional information

Electrical supply	230Vac ± 10% 50 Hz
Supply fusing	20LCT or MCB20A (1pole, 440V) recommended or equiv.
Switching capacity	6kW max
Quiescent power consumption	50mA.
Terminals	2.5mm2 rising clamp
Operating Temperature	-20°C to 30°C, -20°C to 40°C
Protection rating	IP65
Cable entry glands	3 accept cables up to 2.5mm
Enclosure dimensions	100 x 60 x 100 mm (WDH)
