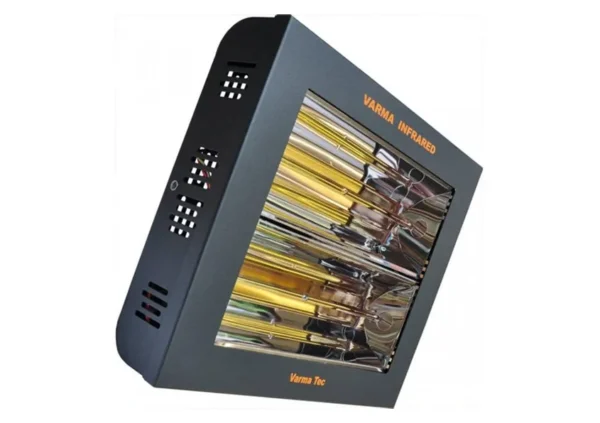

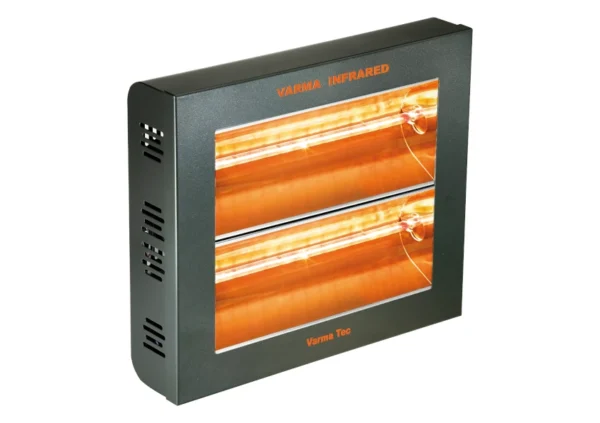

Compact twin element 3kW/4kW vertical array heaters for workshops, warehouses and garages.
£355.00 £426.00 inc. VAT
Or call us on 01424 533215
• Twin element, long-throw design
• IPX5 rating
• Easy to fit tilt and swivel mounting bracket
• Gold quartz halogen elements for near-neutral light output
• Optically designed parabolic reflectors for maximum heat output
• Rugged powder-coated mild-steel enclosure

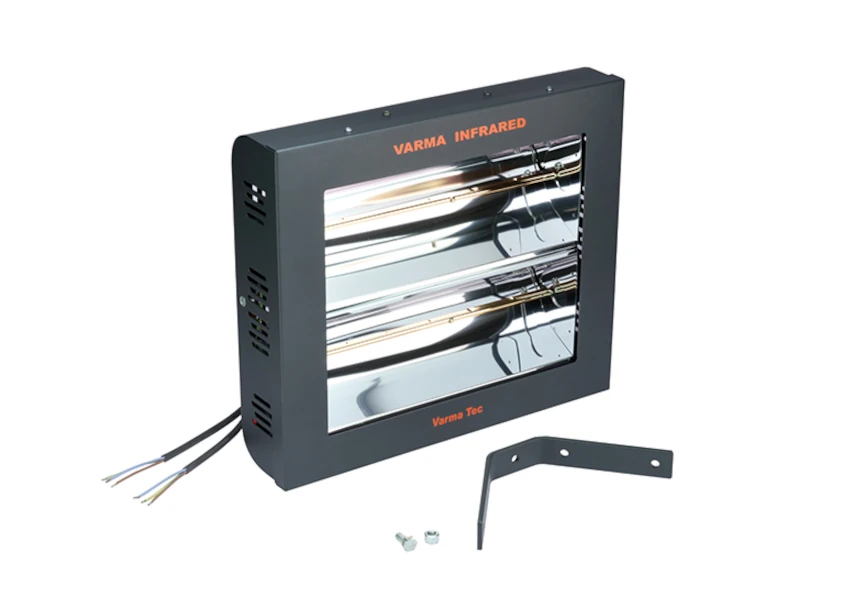

Compact twin element 3kW vertical array heaters for workshops, warehouses and garages. These heaters have a high heat output and provide a substantial, long throw of heat – great for zone heating in most industrial environments. They can also be used as modules in larger heater arrays – for example for high-bay heating in warehouses – at a lower cost than other alternatives. Each infrared element has its own mains flex which can be connected together or switched separately. IPX5 rated so suitable for use in damp or wet areas. A thoroughly proven and popular infrared heater. The 3kW version can operate from a standard 13 amp outlet.
3kW Heater Replacement Element: SP990510
4kW Heater Replacement Element: SP990504
| Output | 3kW, 4kW |
|---|---|
| Heatable area | 25–27m² |
| Rec. mounting height | 3.0–3.5m |
| Rec. mounting angle | 45° |
| Throw | 5.5m |
| Spread | 5.0m |
| Recommended Spacing Between Units | 2.7-3.0m |
| Electrical supply | 220-240V ac 50/60 Hz single phase |
| Insulation | Class 1 |
| Enclosure | Mild steel, powder coated dark grey, with aluminium reflectors |
| Environmental protection | IPX5 (splash proof) |
| Element life | 5000 hours (nom) |
| Colour | Cast Iron Grey (RAL7015) |
| Dimensions | 40x 35 x 13cm (WHD) |
| Weight | 5kg |

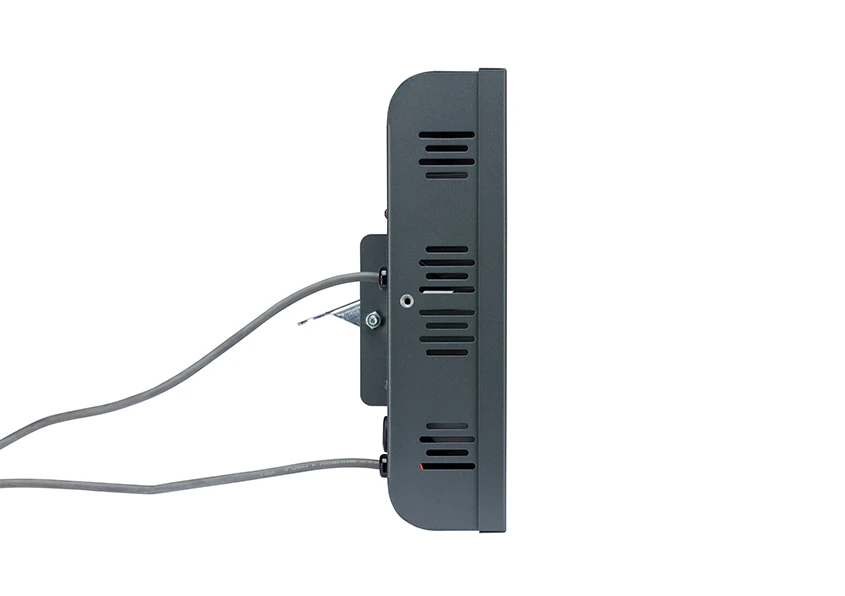

| Cable | Two 1.5m silicon insulator cables, heat resistant to 180°C |

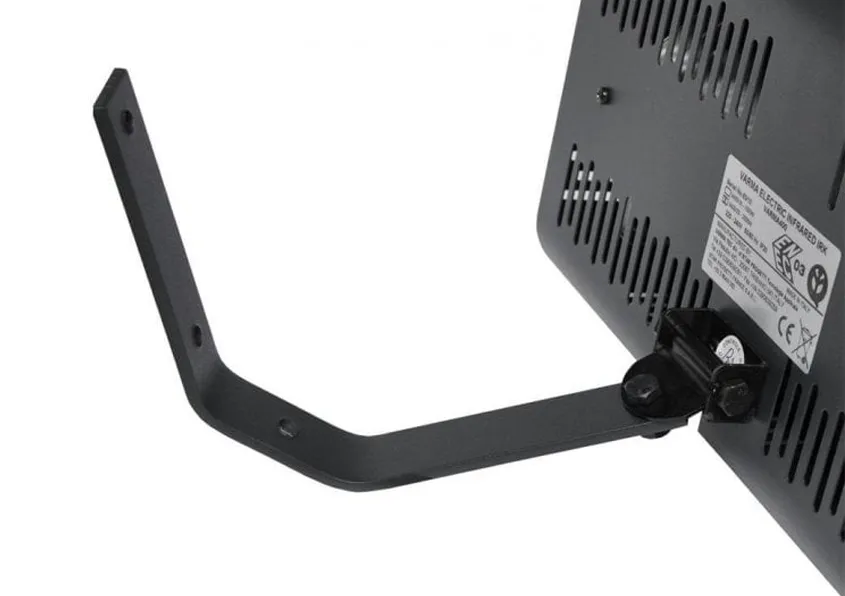

| Other | Heavy duty tilt & swivel wall bracket included |
