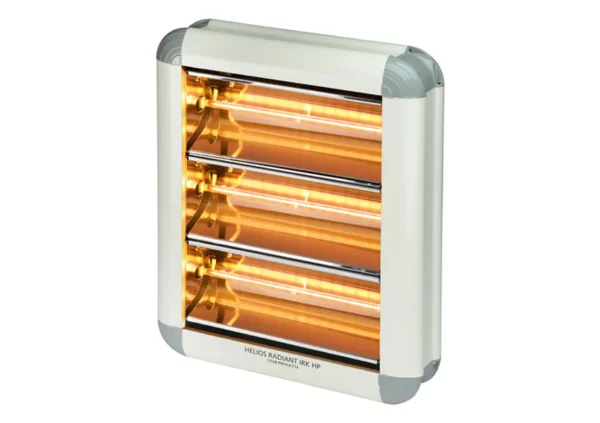

Helios HPV3-60T 6.0kW high bay, high power warehouse and factory heater

helios-hp-series-horizontal-6-0kw-high-bay-warehouse-factory-infrared-heater

Helios HP 4.5kW & 6kW Vertical Heaters

Exceptional radiant heat output for industrial warehouses, factories, churches and large manufacturing spaces.

£649.00 £778.80 inc. VAT

Output

Clear

Add to quote

Or call us on 01424 533215

Reduce heating costs
No heat wastage
Energy efficient

Low maintenance
Long life heater elements
Two year warranty

Product Code: HPV3-60TX / 45TX Categories: Churches, Electric Radiant Heaters, Industrial Infrared Heating

• Exceptionally high heat output
• 3 Phase / 1 Phase compatible (please see wiring download)
• IP20 rating
• Suspend from chains or mount to wall
• Industry-standard gold quartz halogen elements for neutral light output
• Optically designed parabolic reflectors for maximum heat output
• Rugged powder-coated aluminium enclosure

Exceptional radiant heat output for high-bay installation in warehouses, industrial units and factories. Supplied with a wall-mounting tilt and swivel bracket or it can be suspended from chains. The heater has three 2kW / 1.5kW infrared elements with neutral density light output (no red glare). The heater elements are very energy-efficient, with over 93.5% conversion of electricity into heat. Integrates directly with single phase or three phase electrical supplies. The heater elements can be switched independently to provide low, medium and high heat settings. For advice on application of this product, please ring us on 01424 533 215.

need to edit the below:

Replacement element: 15005-al

Additional information

Output	4.5kW, 6kW
Heatable area	25–30m²
Rec. mounting height	3.5–4.0m max
Rec. mounting angle	Horizontal to 45°
Throw	5.0m
Spread	6.0m
Recommended Spacing Between Units	5.0m
Electrical supply	400V ac three phase or 220-240Vac single phase
Insulation	Class 1
Enclosure	Aluminium chassis, powder coated, with aluminium reflectors
Environmental protection	IP20
Element life	5000 hours (nom)
Colour	Cream (RAL1013)
Dimensions	42x 52.5 x 11.5cm (WHD)
Weight	10.5kg
Cable	N/A
Other	Heavy duty tilt & swivel wall bracket included
