Varma 1.3kW Dustproof heaters x4 and CC3 6kW Controller

Low-carbon, high-performance industrial heating and controller solution!

Four rugged 1.3kW dustproof heaters suitable for use in industrial or workshop environments where high levels of dust and moisture are present, plus CC3 controller.

£1,394.00 £1,672.80 inc. VAT

Or call us on 01424 533215

Product Code: DPH2C-4CC3 Categories: ,
Share

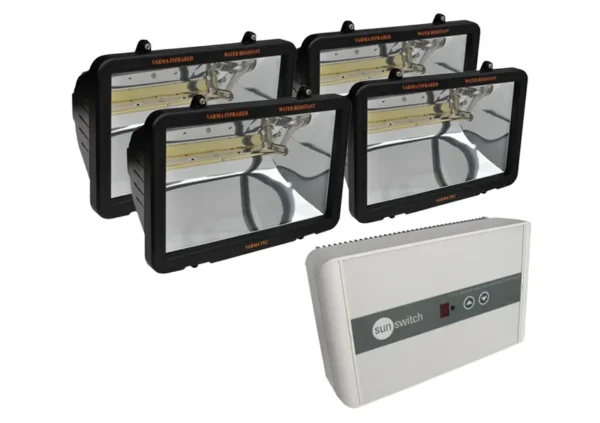

4 x Dustproof Heaters and Controller Combination

Varma 1.3kW Dustproof heater – IP54

• Suitable for use in dusty and damp environments
• Safety glass front panel
• Stainless steel bracket with wing nut for easy removal
• Cable not included

This rugged 1.3kW Dustproof heater is suitable for environments where high levels of dust and moisture are present, like some animal enclosures. It can be used to create multiple basking zones are one larger bask zone.. The element and optical grade reflector are sealed behind a tempered safety glass front panel. The safety glass used allows virtually all the heat to pass through it, increasing heat output and extending element life. Supplied with a wall mounting bracket. Easy to install. Cable not included. Replacement element: 15028R

CC3 6kW Energy-saving Comfort Controller – Manual

• Convenient 10-step instant heat adjustment
• Saves energy when heat is turned down
• IP65 rated – for use indoors, outdoors or in humid environments
• Easy to install
• Can be run from a 13A plug for loads below 3kW
• Soft-start – extends life of infrared heater elements by up to 30%
• Optional temperature, PIR and time based control (see below)
• Works with any SunSwitch heater/s up to a maximum overall load of 6kW

This CC3 Energy-saving Comfort Controller enables the heat output from up to 6kW of SunSwitch infrared heaters to be manually adjusted for complete comfort control, while also providing a soft-start to maximise element life. The advanced phase angle circuit has been specially developed for use with quartz halogen heating. When turned down, the CC3 also reduces energy consumption which, in the long run, more than offsets the purchase price.

The CC3 features a soft-start circuit that brings the heaters on gently. This optimises the life of the infrared elements and eliminates nuisance tripping caused by inductive current rush. Optional accessories that automate control and provide additional energy-savings include temperature and PIR sensors. With the optional temperature sensor, if the ambient temperature exceeds the set point, the heater/s are switched off. The PIR volt-free contact can also be wired to a conventional heating time programmer so the heating will switch on and off automatically at scheduled times.

Additional information

Output

2.6kW

Heatable area

8–10m²

Rec. mounting height

2.0m

Rec. mounting angle

45°

Throw

3.0m

Spread

3.0m

Recommended Spacing Between Units

2.0–2.5m

Electrical supply

220-240V ac 50/60 Hz single phase

Insulation

Class 1

Enclosure

Powder-coated alloy casting with SS reflector

Environmental protection

IP54 (dust and splash proof)

Element life

2000 hours (nom.)

Colour

Black

Dimensions

38 x 24 x 17cm

Weight

2.5kg

Cable

Not supplied

Other

Wall bracket included
